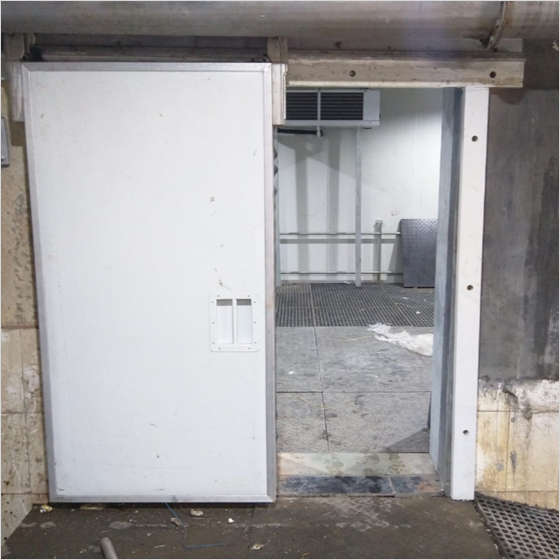

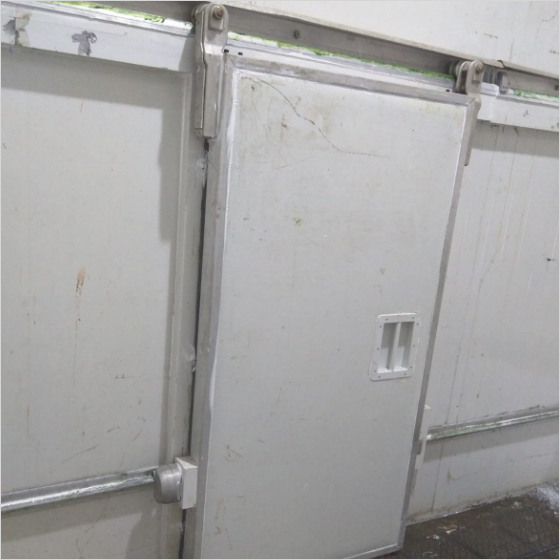

Puf Insulated Cold Room Sliding Door

Sliding Door
Sliding Door

In case of narrow spaces and if pedestrians and vehicles frequently access cold rooms, sliding cold room doors are the ideal solution OPIPL Team offers a top quality cold room and freezer sliding doors at the best price, with a selection of the most competitive products thanks to their efficiency, quality and innovation. OPIPL System is professional in sliding door design and construction. OPIPL Doors Single Sliding Door is used for personnel and material handling traffic where space restricts the use of swing doors or when installation space is only available on one side of the door opening (corridors and loading platforms).

Suitable for interior and exterior applications in coolers, freezers and food processing facilities. Unique range of sliding doors for chillier and freezer applications 0C to -40C. The door edges are constructed from resistant heavy gauge aluminium profiles. The door leaf panels are injected with high pressure polyurethane, leaf thickness upto 150mm, stainless steel finishes are available. The perfect insulation and sealing of the doors prevents the formation of ice and helps to constantly save energy. All doors have a smooth metal surface which can be easily and hygienically cleaned.



SLIDING DOOR TYPES

 For Normal and Medium Temperature 0C°/+15C° Doors Type – 90 mm panel thickness
For low Temperature -5C°/ -25 C° Doors Type – 100 mm and 125 mm panel thickness
For freezing Temperature -25C°/ -40 C° Doors Type – 150 mm panel thickness



ADVANTAGES:

• Strongest door leaf edging
• Energy savings at freezer doors – using self regulating heating wires
• No deformations thanks to extra durability
• Very competitive price
• Short lead time

FEATURES:


Application: Sliding doors for chill room, freezer, or blast temperature (Manual Operated)
Dimensions: Standard dimension from 900*2100 mm (clear doorway), all other dimensions are available upon customer request.
Temperature range: +15C°to -40C°
Door leaf: Single leaf, aluminium edges. Heated door frame edges below 0C° using self regulating energy saving wires.
Leaf thickness: 90 mm, 100 mm, 125mm or 150 mm
Insulation: PUR-foam filled. Density- 40kg/m3
Leaf surface: P.P.G.I shade RAL 9002 with removable protection foil, Stainless steel, Aluminium



"WE FOLLOW IS:12436-1988 FOR PREFORMED RIGID POLYURETHANE (PUR) AND POLYISOCYANURATE (PIR) FOAMS FOR THERMAL INSULATION."
