PUF INSULATED SANDWICH PANEL

Puf Insulated Sandwich Panel
Puf Insulated Sandwich Panel
Puf Insulated Sandwich Panel
Puf Insulated Sandwich Panel
Puf Insulated Sandwich Panel
Puf Insulated Sandwich Panel

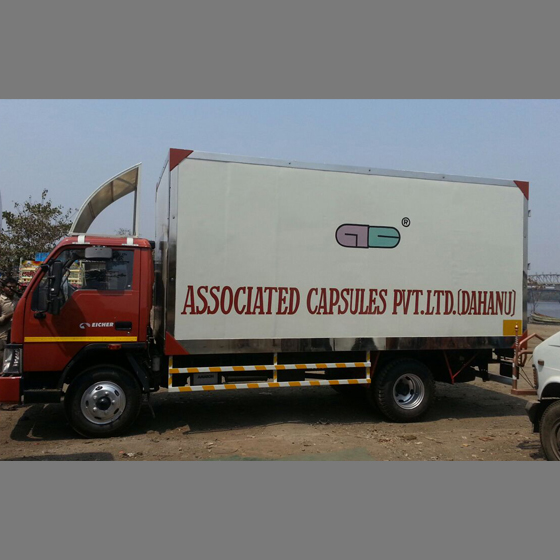

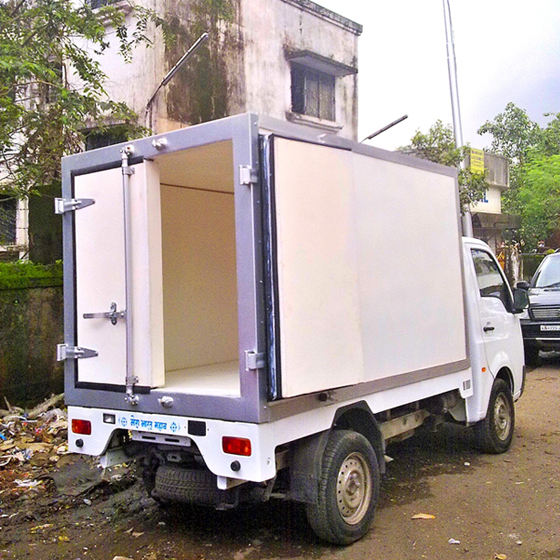

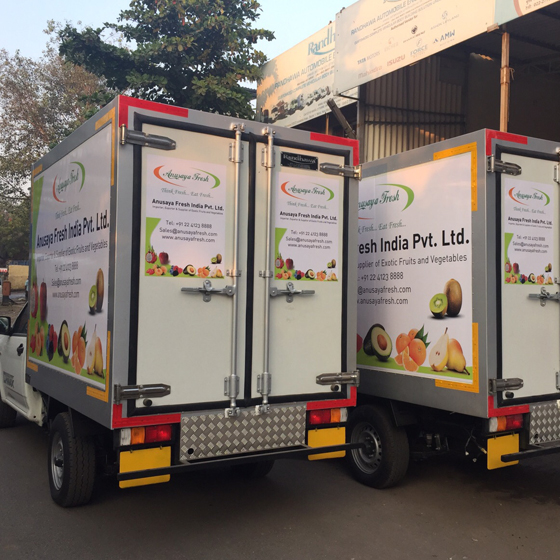

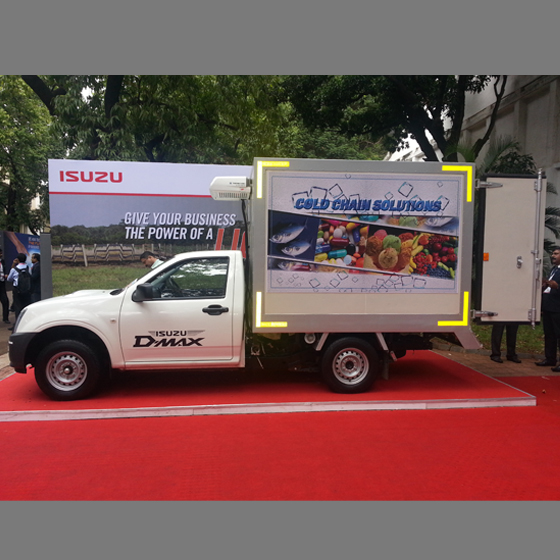

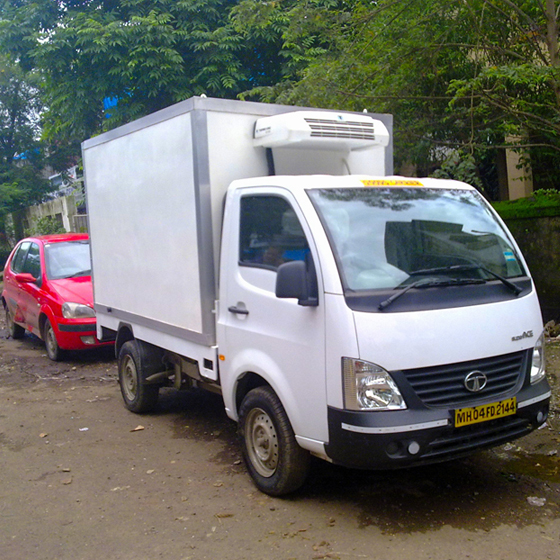

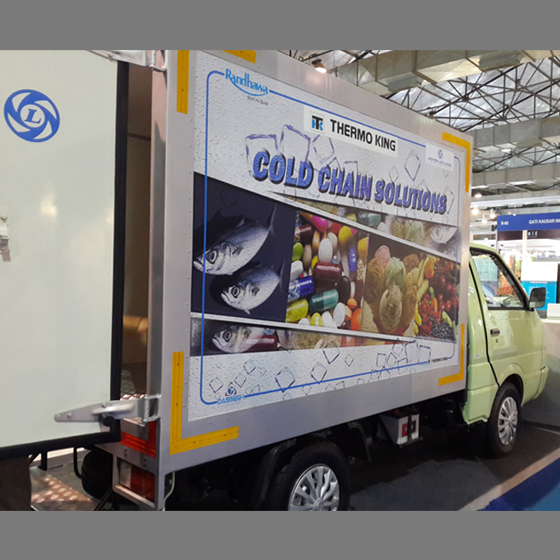

To meet the market’s requirements for efficient temperature control without skimping on quality, OPIPL Insulated Van Panels, fit snugly around the interior of the load space to create a lightweight conversion that can increase payload capabilities without sacrificing temperature performance.
By creating a box within a box design we have produced an extremely temperature efficient insulator which has achieved a superior thermally efficient and smooth food-safe lining.

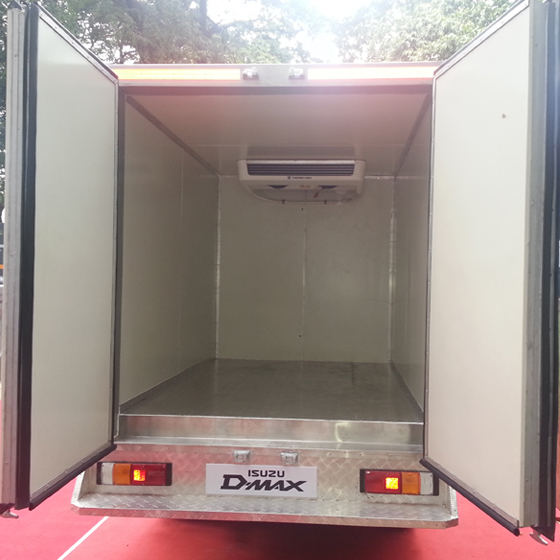

The internal lining has been created by bonding a layer of insulating foam to a layer of high specification plywood and then adding a layer of fiberglass. This gives a strong inner surface, being easy to clean; it is also extremely durable and therefore can still look good for many years.
So that our insulated conversions can withstand the constant loading and unloading process involved in daily distribution operations, we have developed a very strong insulated floor, with special insulated wheel boxes which are able to reduce the ingress of heat. OPIPL can be relied upon to insulate and refrigerate your van so you can transport your goods in a safe and true temperature-controlled environment.

PRODUCT DETAILS:

• Length – Up To 6Mtr.
• Width – Up To 1.2Mtr
• Thickness- 25mm To 150mm.
• Note- 25mm To 40mm Thickness Available Up To Certain Length.

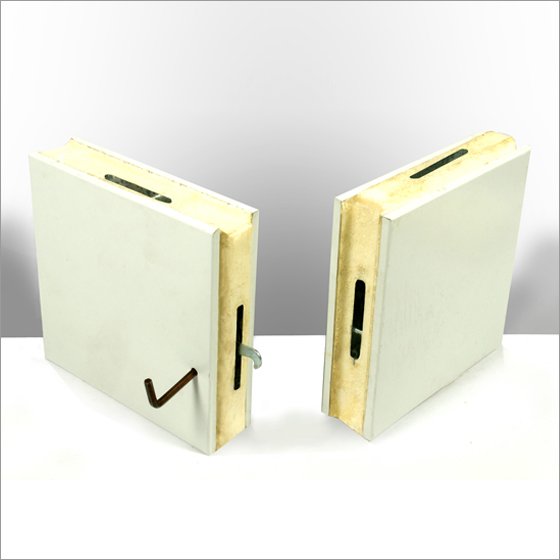

• Tongue And Groove With Specially Designed Cam Locks Provided.
• Density – 40Kg/M3

AVAILABLE IN PUR AND PIR.


FACING :



• GI PRE COATED
• SS
• BITUMINOUS PAPER
• ALUMINIUM FOIL PAPER
• KRAFT PAPER
• PLY
• FRP SHEETS.
• ALUMINIUM ETC.


ADVANTAGES / BENIFITS:

• Thin Walls
• Optimum Insulation Without Thermal Bridges
• Components Can Be Disassembled And Reused
• Outstanding Load Bearing Capacity
• Hygenic For Food Preservation
• Odorless
• Long Life And Durable
• Resistant To Most Oils , Chemicals And Solvents
• Fire Resistant.


"WE FOLLOW IS:12436-1988 FOR PREFORMED RIGID POLYURETHANE (PUR) AND POLYISOCYANURATE (PIR) FOAMS FOR THERMAL INSULATION."
