HIGH DENSITY PUF BLOCKS

PUF BLOCK

PUF BLOCK

PUF BLOCK

PUF BLOCK

PRODUCT DESCRIPTION :

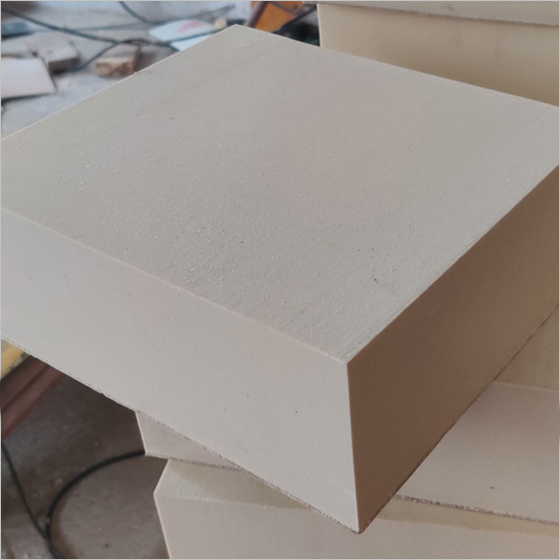

The high-density rigid cellular polyurethane block are designed to support structural loads while insulating buildings. Cellular polyurethane is a natural insulator, and formulated in these high-density blocks, it provides the strength to support large compressive loads with little deflection. At the same time, it offers economical, code-required continuous insulation that reduces loads on cooling equipment for lower energy costs.
A wide range of compressive strengths satisfies industrial and cold-storage thermal construction applications.

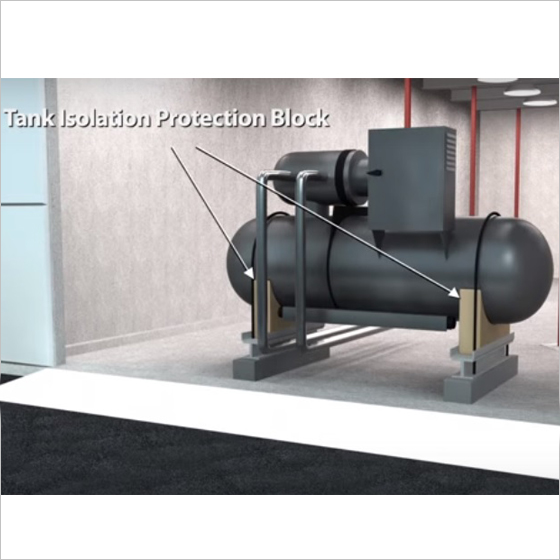

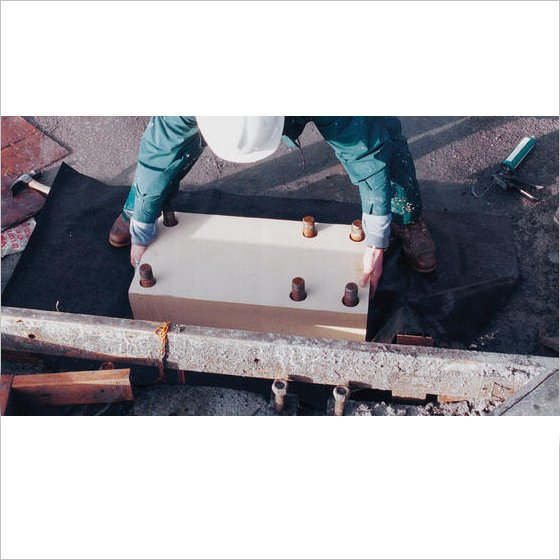

This series extends the building insulation envelope from the roof to the foundation below ground. Even at the high densities required for support of column-bearing loads and precast/tilt-up wall panels, these blocks will provide thermal insulation value superior to lightweight concrete, treated wood blocks, and other traditional materials. They are commonly used as thermal isolation load-bearing blocks in concrete footings within refrigerated warehouse structures. As insulated structural support for roof equipment, roof perimeter fall protection and chiller tanks, they minimize both thermal transfer and condensation.

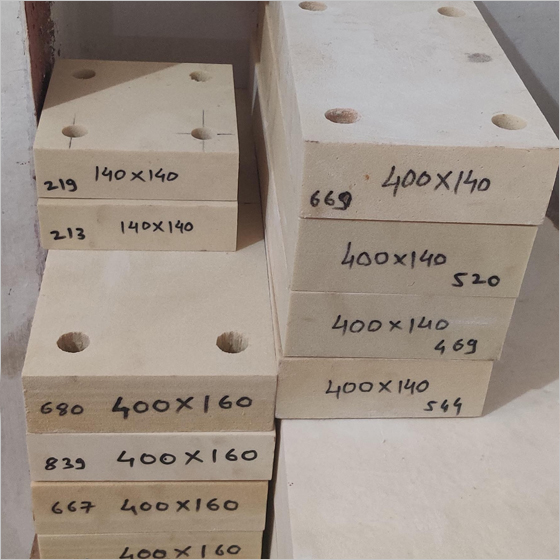

These blocks are delivered to contractors ready to use. They arrive at the jobsite cut-to-size, predrilled with anchor-bolt holes, and marked for fast and easy placement. This eliminates waiting for cutting or drilling before moving onto the next construction step, saving precious time.



PRODUCT DETAILS

Block Thickness - 25mm And Above.
Length & Width - As Per Requirement
Density - 100Kg/M3 To 500Kg/M3

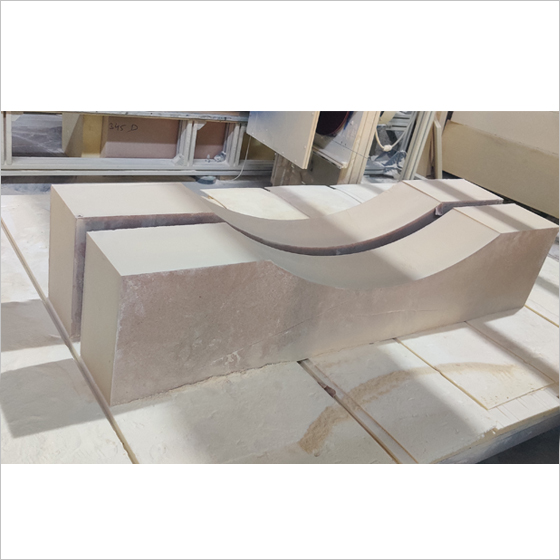

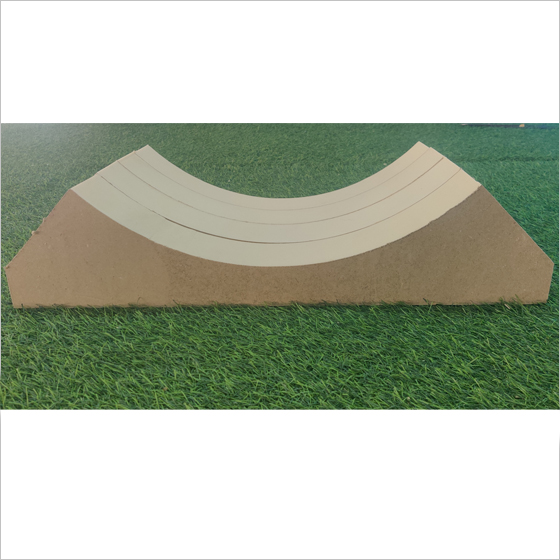

NOTE: SHAPES AND SIZES AS PER CUSTOMER REQUIREMENTS CAN BE MANUFACTURED.



ADVANTAGES


Short-circuits energy transfer to earth at foundation
High compressive strength supports roof-column loads
Creep resistant resists distortion under load over time
Locks out moisture closed-cell material does not absorb water
Will not rot or dissolve in sub grade applications
Does not promote steel corrosion
Does not attract or support insects or vermin
Does not release chemical compounds into surrounding soil
Compatible with grouts, adhesives and concrete
No lost time products arrive at the site ready to use


"WE FOLLOW IS:12436-1988 FOR PREFORMED RIGID POLYURETHANE (PUR) AND POLYISOCYANURATE (PIR) FOAMS FOR THERMAL INSULATION."
