Prefabricated sandwich panel with polyurethane insulation is the best solution for wall and ceiling partitions and cold rooms. Formed in place with fire retardant polyurethane using high pressure, CFC-free and use of HCFC 141B technology which results in a superior insulation and construction material.

These sandwich panels are design for a fast and easy assembly. OPIPL Sandwich Panel comprises of two steel skin (Pre-painted Galvanized Iron Sheet PPGI) that are bonded with high pressure injected polyurethane foam with tongue and groove joint system complete with cam-locking mechanism.

Our slim insulated partitions enable you to divide your interior space into cool and normal temperature zones. With a desired thickness of insulating Polyurethane foam inside, our partitions can be used in any office and provide a visually appealing interior look and reduce your energy consumption at the same time.

These give us the following advantages

• Thin walls, Fast installation
• Partitions or Rooms can be dismantled and reinstalled.
• Outstanding load bearing capacity, High impact resistance.
• Hygienic, Odorless
• Long life and durable
• Resistant to most oils, chemicals and solvents
• Fire resistant
• Minimizes electric consumption for maintaining desired temperatures

CAM LOCK SYSTEM



Puf Insulated Sandwich Panels



A cam lock is a device that is embedded at precise locations alongside the edges of our insulated panel. The cam lock fasteners come in pairs; a male cam lock latch and a female cam lock receptacle.

Insulated panels are joined together in required lengths to assemble partition walls, ceilings and floor. It is well organized Tongue & Groove system which utilizes the Cam locks to achieve superior tightness and insulation. Panels slip into place allowing for easy and rapid installation, whilst improving structural strength and thermal efficiency and also offering a clean, smooth aesthetic look.


We provide partition and ceiling panels in any desired surfaces such as:

• GI Pre coated, SS, Ply, FRP Sheets, Aluminum.

PRODUCT DETAILS

• Length - Up to 6mtr
• Width - Up to 1.2mtr
• Thickness- 50mm to 150mm
• Density - 40 kg/m3

Tongue and Groove with specially designed CAM LOCKS provided.

Note- 25mm to 40mm thickness available up to certain length without CAM-LOCKS


APPLICATIONS OF PUF INSULATED SANDWICH PANELS

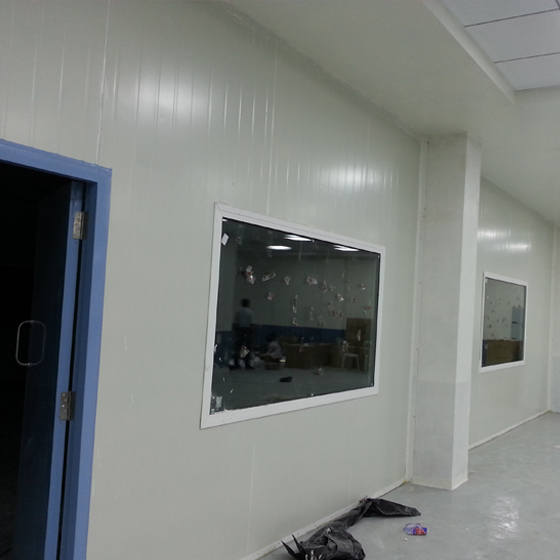

• Partitions And Ceilings

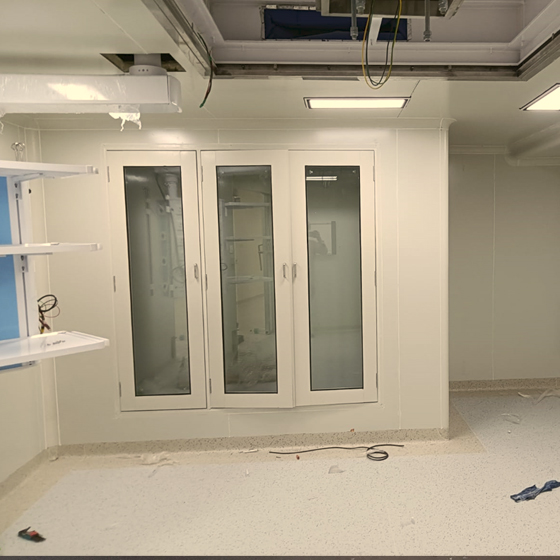

• Clean Rooms

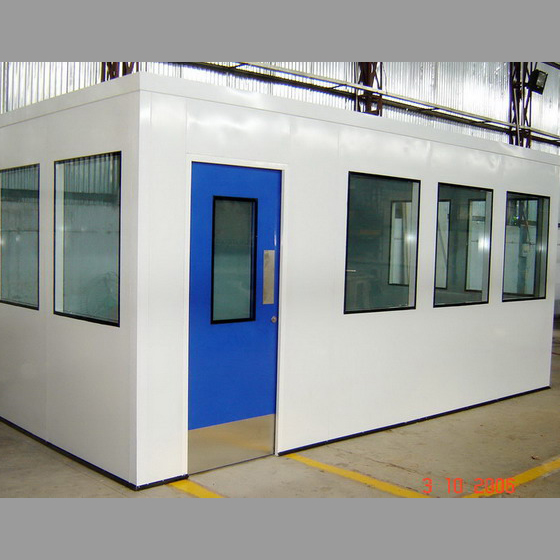

• Machinery Enclosures
• Portable Rooms
• Ripening Chambers.



"WE FOLLOW IS:12436-1988 FOR PREFORMED RIGID POLYURETHANE (PUR) AND POLYISOCYANURATE (PIR) FOAMS FOR THERMAL INSULATION."
